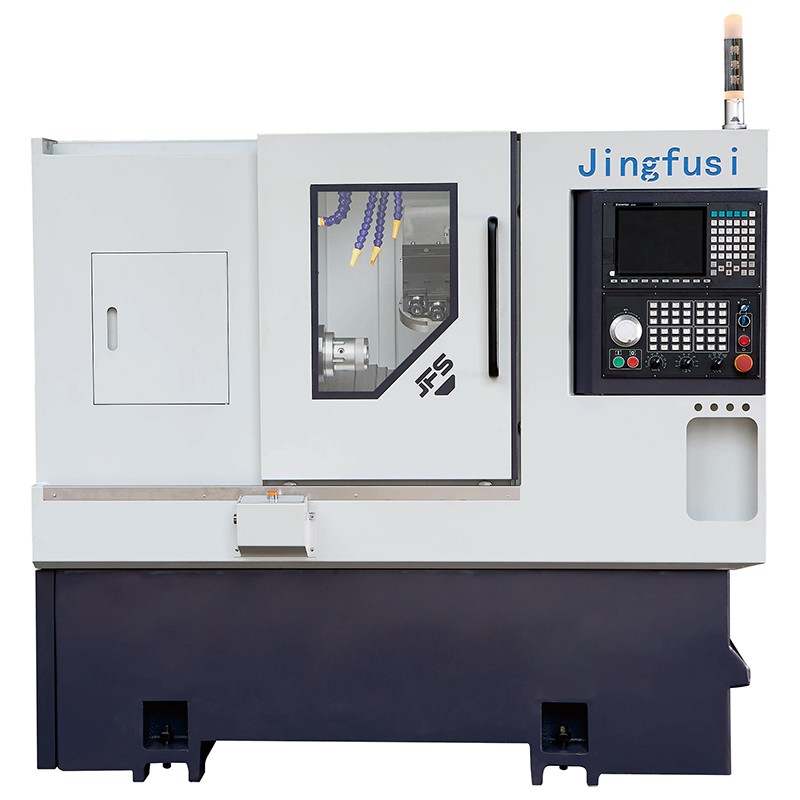

Turn Mill CNC Lathe CK46 52

Jingfusi provides quality Turn Mill CNC Lathe CK46 52. The equipment is equipped with built-in screw power head, which can accurately mill small-diameter inner wall spiral grooves, small screws and various oil grooves. According to actual processing requirements, the power head and turret can be flexibly selected to further expand the processing scene and operation efficiency.

Model:CK46/52

Send Inquiry

Product Description

Jingfusi is a Turn Mill CNC Lathe CK46 52 factory. The following are the main features of our product:

●High moving speed and high processing eficiency

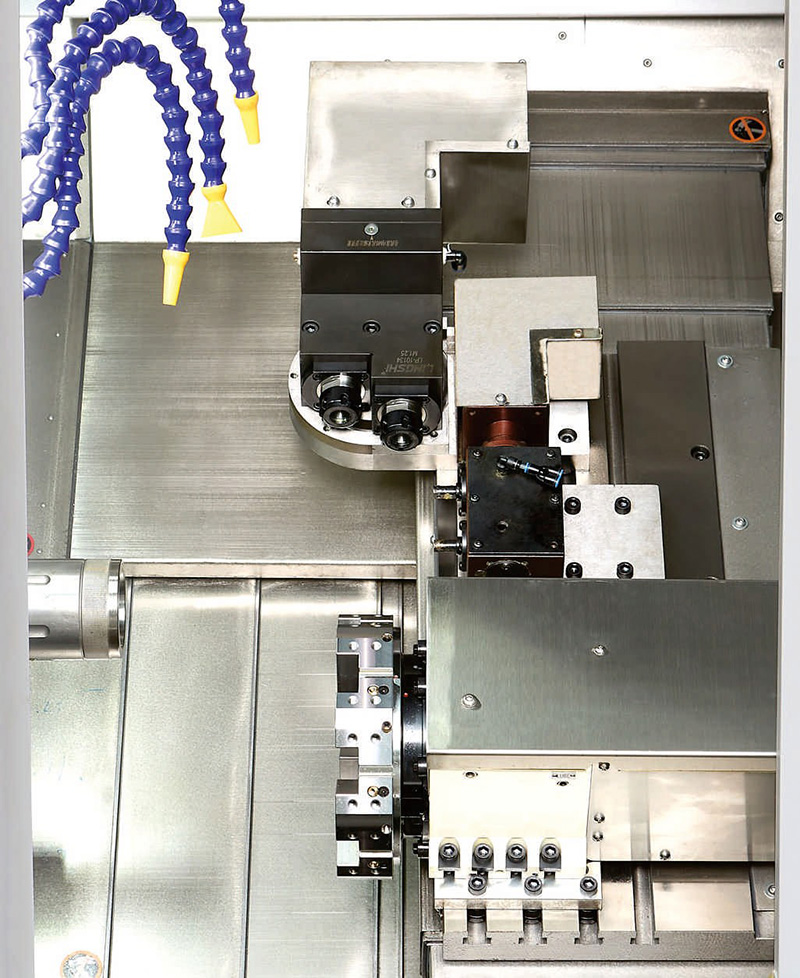

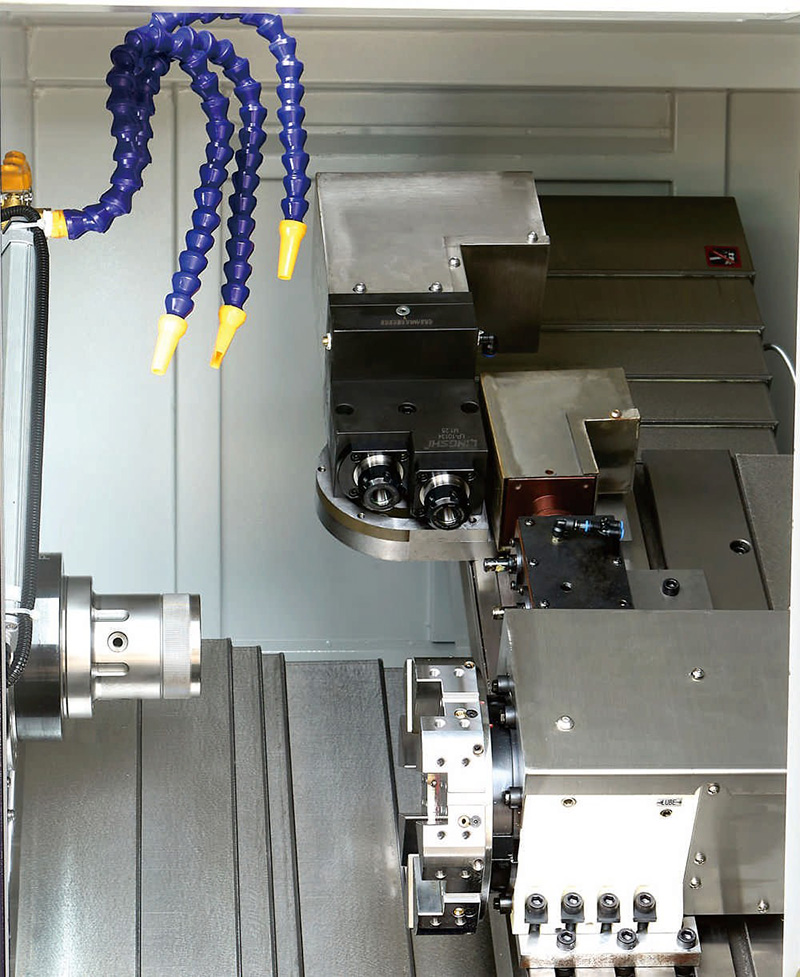

●Equipped with an internal helical power head, it can mill small-diameter internal wall helical grooves, small nails, and oil grooves. It can be equipped with a power head and tool turret.
●Enlarged tool holder plate for better rigidity

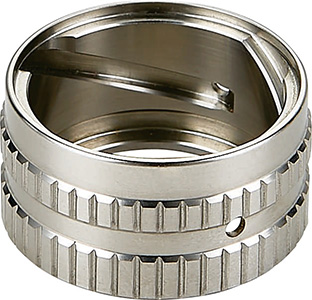

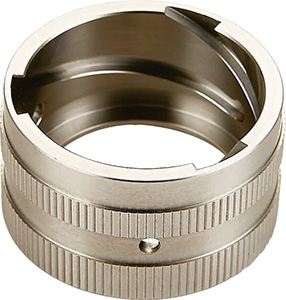

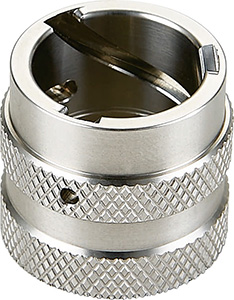

●Machinable materials include stainless steel, titanium alys, and carbon steel.
●The integral casting undergoes annealing, vibration time, and other aging processes to ensure long-term stable machining and extend the machine tool's service life.

Main Specification

Model of lathe		unit	CK46	CK52	Remart
Processing capacity	Max swing diameter over bed	mm	400	400
	Maximum tuming diameter	mm	Q160	Ø160	Disk
	Max.turning length	mm	380	380
Spindle	Spindle center height from ground	mm	1080	1080
	Spindle nose	-	A2-5	A2-6
	Spindle bore diameter	mm	Ø56	Q66
	Maximum bar materal diameter	mm	45	051
	Maximum spindle speed	r/min	4500	4000
	Spindle motor power/torque	Kw/N.m	7.5Kw/47N.m	11Kw/72N.m
Servo Turret	Servo Turet MK-63RSV-8T		No	No	Optional
X/Z/Y axis feeding	Max.fast travel speed	m/min	24	24
	Power head motor	Kw/N.m	YASKAWAI 1.3 KW/8.34Nm or SYNTEC 1.8KW/11.5Nm	YASKAWAI 1.3 KW/8.34Nm or SYNTEC 1.8KW/11.5Nm
	×/Z-axis C3-grade ball screws	-	32/32	32/32
	×/Z-axis roller guide rails		35/35	35/35
	X axiseffective travel	mm	1000	1000
	Z axis effective travel	mm	400	400
Equipmentspecifications	Machine net weight	kg	2600	2700
	Total machine power	KW	12	15.5
	Machine L×W×H	mm	2100×1580×1800	2100×1580×1800

The machine tool is constantly being optimized;please refer to the actual data of the machine toolfor the above parameters.

Optional items

Configuration item		CK46	Ck52
Main Spindle	Mechanical spindle	●	●
Main Spindle	Electric spindle	o	O
controller	SYNTEC controller	●	●
Feed axis	Yaskawa	●	●
Feed axis	SYNTEC	O	O
Clamping	Pull back clamp	●	●
Power head	Internal spiral power head	●	●
Power head	Side/end face power head	O	O
Turret	8 workstations	O	O
Turret	12 workstations	O	O
Auxiliary equipment	Parts collect device	O	O
	Feeding device	O	O
	Chip conveyor	O	O
	Automated robot	O	O
	Oil mist separator	O	O
