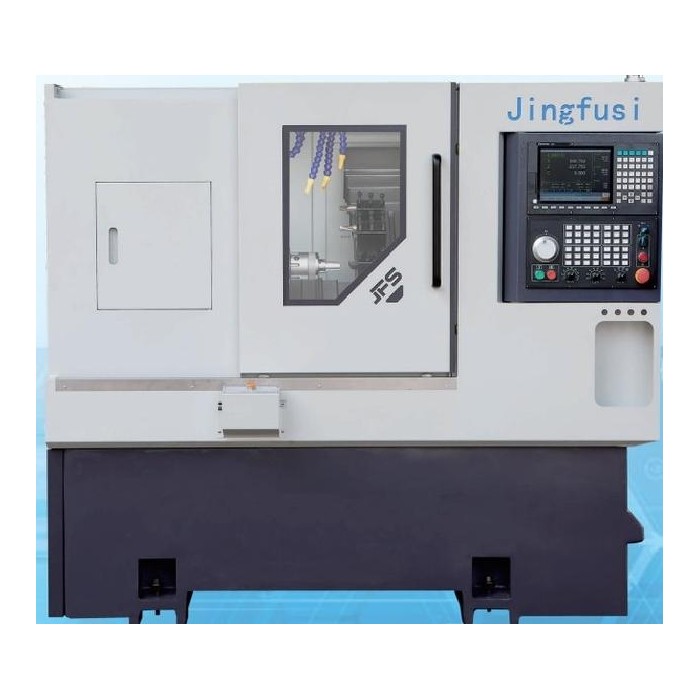

CNC Gang Tool Lathe CK36 25 46S

Jingfusi is a CNC Gang Tool Lathe CK36 25 46S supplier. With the rich experience accumulated in the industry, we sincerely look forward to establishing contact with you and will provide you with professional services and support covering the whole process.

Model:CK36/25/46S

Send Inquiry

Product Description

Jingfusi is a CNC Gang Tool Lathe CK36 25 46S supplier. Our product is simple to operate and maintain, and operates very quickly in actual use. The following are the main features of our product:

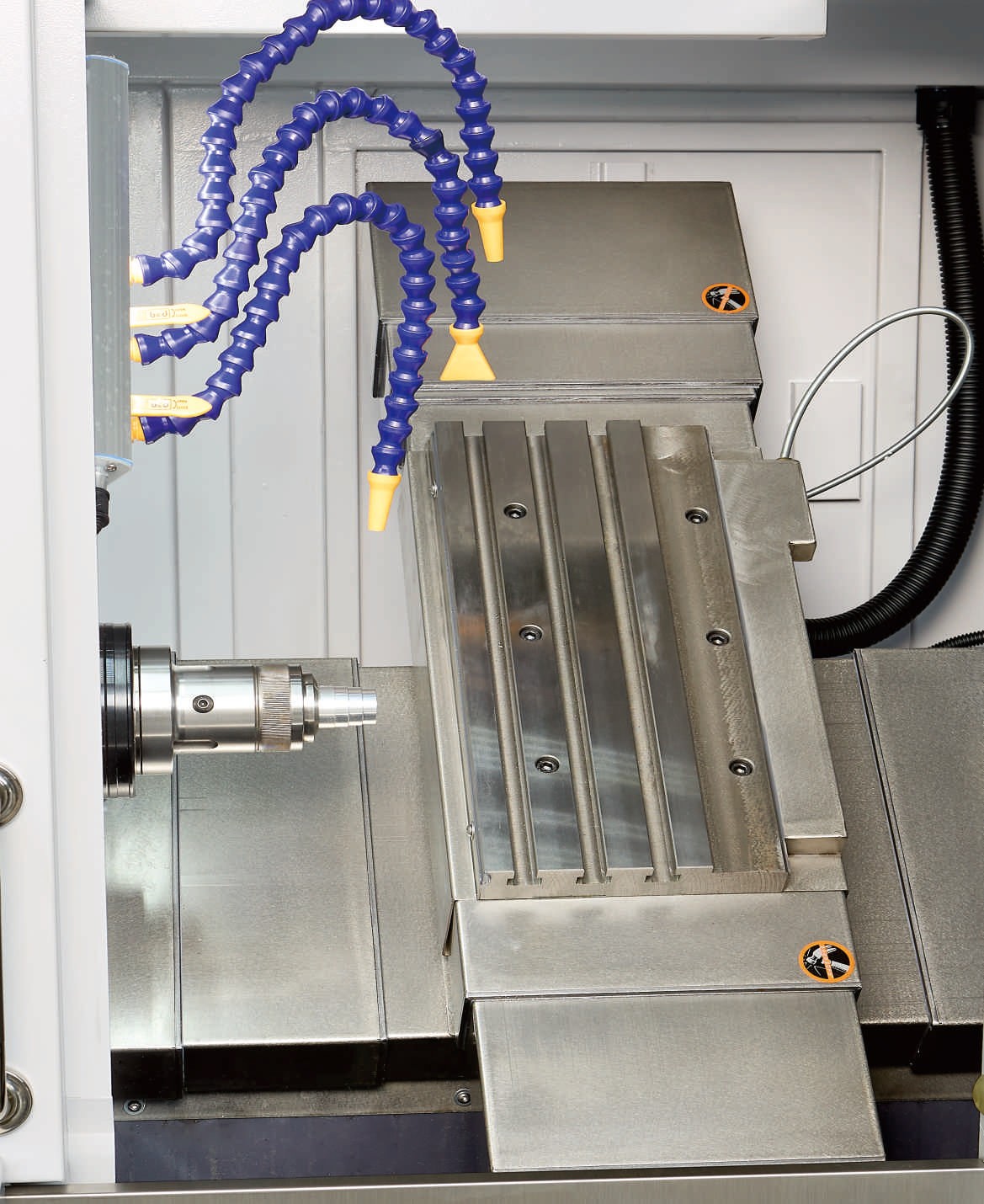

Optional attachment include a turet,flycuter head,and power head.The power head can be swiel,alowing forarbitrary swivelangles from 0°to90°,enabling integrated milling and turning machining.
·Slant bed
·Short stroke maximizes precision
·Machinable materials include stainless steel,titanium alloys,and carbon steel
·The integral casting undergoes annealing,vibration testing,and aging processes to ensure long-term stability and extend the machine tools lifespan.

Main Specification

Model of lathe		unit	CK36S	CK25S	CK46S	Remart
Processing capacity	Max swing diameter over bed	mm	300	O300	0300
	Maximum tuming diameter	mm	Ø100	Ø100	Ø100	Disk
	Max.turning length	mm	200	200	200
	Ssidle ente heght fomgound	mm	1020	1020	1020
	Spindle nose	-	A2-4	A2-4	A2-5
	Spindle bore diameter	mm	043	Q38	056
	Maximum bar materal diameter	mm	Q35	025	Ø45
	Maximum spindle speed	r/min	7000	8000	4500
	Sspindle motor power/torque	Kw/N.m	5.5Kw/35Nm	3.7Kw/23Nm	7.5Kw/47Nm
Feed axis	Max.fast travel speed	m/min	20 or 30	20 or 30	20 or 30
	×/Z/Y axis motor power/torque	Kw/N.m	YASKAWAl850W/3.39Nm or SYNTEC 1KW/3.2Nm	YASKAWA1850W/3.39Nm or SYNTEC 1KW/3.2Nm	YASKAWA1850W/3.39Nm or SYNTEC 1KW/3.2Nm
	XZ-xis C3-grade ballscrews	-	32/32	32/32	32/32
	×Z-axis roler guide rails	-	25/25	25/25	25/25
	X axis effective travel	mm	750	750	750
	Z axis effective travel	mm	370	370	370
Equipmentspecifications	Machine net weight	kg	2000	1900	1900
	Total machine power	KW	10	13.5	13.5
	Machine L×W×H	mm	1700x1300×1400	1700×1300×1400	1700×1300×1400

The machine tool is constanty being optimized;please refer t the actual data of the machine too for the above parameters.

Optional items

Configuration item		CK36S	CK25S	CK46S
Main Spindle	Mechanical spindle	●	●	●
Main Spindle	Electric spindle	O	O	O
controller	SYNTEC controller	●	●	●
controller	FANUC controller	O	O	O
Feed axis	Yaskawa	●	●	●
Feed axis	SYNTEC	O	O	C
Clamping	Pull back clamp	●	●	●
Auxiliary equipment	Material receiving device	O	O	O
	Feeding device	O	O	O
	Chip conveyor	O	O	O
	Automated robot	O	O	O
	oil mist separator	O	O	O
