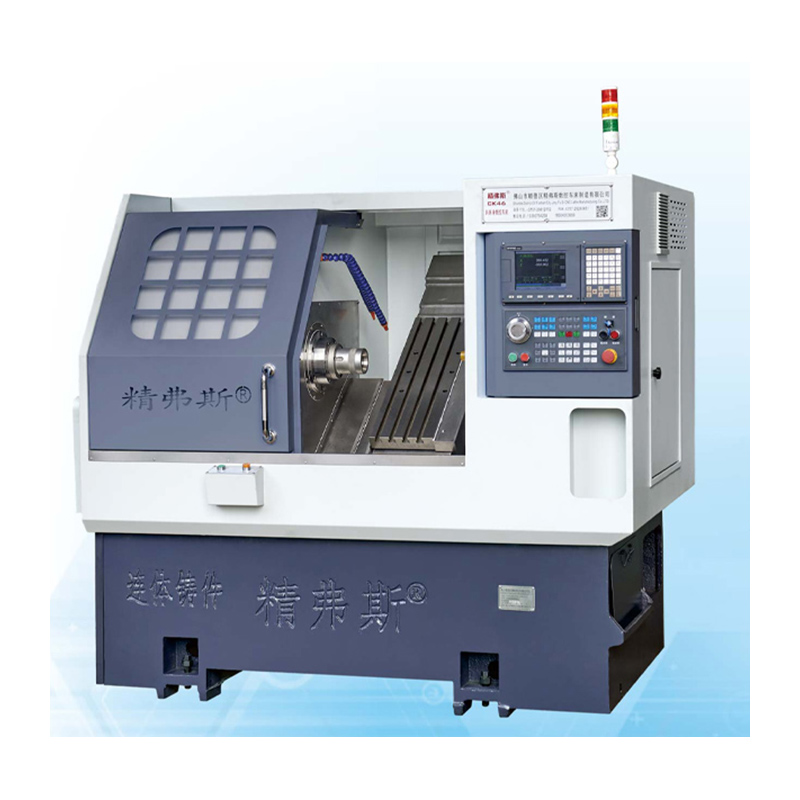

High Precision CNC Slant Bed Lathe Machine

The following introduction provides an overview of the Jingfusi® high-quality High Precision CNC Slant Bed Lathe Machine, aiming to offer you a clearer understanding of its features and benefits. We extend a warm welcome to both new and loyal customers to continue collaborating with us in our shared pursuit of a brighter and more successful future!

Model:CK46

Send Inquiry

Product Description


Jingfusi® High Precision CNC Slant Bed Lathe Machines excel at delivering precision in both turning and milling operations. As a dedicated manufacturer, we take pride in offering you the finest Jingfusi® High Precision CNC Slant Bed Lathe Machines. Our commitment extends beyond product quality, as we are dedicated to providing you with exceptional after-sale service and ensuring your orders are delivered punctually. Your satisfaction is our priority.



These High Precision CNC Slant Bed Lathe Machines boast several key features and characteristics that set them apart:


Slant Bed Design: The inclining of the bed enhances rigidity and stability during machining, ensuring proximity between cutting tools and workpieces for improved accuracy.


High-Precision Spindle: With a high-precision spindle, these machines minimize spindle runout and deliver exceptional rotational accuracy. This precision is indispensable for achieving tight tolerances and superior surface finishes.


Advanced CNC Controls: The incorporation of advanced CNC controls with versatile programming capabilities empowers operators to efficiently program and manage intricate machining operations with precision and adaptability.



Machine Travel Diagram

High Precision CNC Slant Bed Lathe Machine

Product Details

High Precision CNC Slant Bed Lathe Machine

Parameter List

project unit CK46 CK52 CK76
Maximum turning length mm 350
Maximum turning diameter on the bed mm Ø 500
Maximum turning diameter on the skateboard mm Ø 160
Bed inclination ° 35°
Effective travel of X/Z axis mm Diameter 1000/400
X/Z axis screw specifications mm 32
X/Z axis rail specifications mm 35
X/Z-axis motor power KW 1.3
Maximum fast movement of X/Z axis m/min 24
Machine tool length X width X height mm 2100X1580X1800
Total weight of the entire machine KG 2600
Knife number fix 8
Square knife size mm 20X20
Round hole cutter size mm Ø20
Total power kw 13 13 16
Average power consumption kw/h 2 2 2.5
main shaft Spindle end face form
A2 - 5 A2 - 6 A2 -8
Maximum spindle speed r/min 6000 (set to 4500) 4200(set to 3500) 3200(set to 2500)
Spindle motor power KW 7.5 7.5 11
Rated torque of spindle motor Nm 47.8Nm 47.8Nm 72Nm
Maximum bar passing diameter mm Ø 45 Ø 51 Ø 75

Machine Tool Accuracy

Machine accuracy,Jingfus factor standard :
Major test item Schematic diagram Detection method
Factory standard
Spindle radial beat, High Precision CNC Slant Bed Lathe Machine
Detect runout of outer cone 0.0025
X-axis repeat position High Precision CNC Slant Bed Lathe Machine
Detect repeated positioning of the X-axis. Note: First predict about 50 times to offset the error of the cold engine and hot engine, and then detect the repeated positioning. 0.0025
Z-axis repeat position High Precision CNC Slant Bed Lathe Machine
Detect repeated positioning on the Z axis. Note: First predict about 50 times to offset the error of the cold engine and hot engine, and then detect the repeated positioning. 0.0025
If the customer wants to test the ISO or VD1 accuracy of X/Z/Y axis, it shall be determined at the time of writing the contract. The customer must test this item at the same time of the initial acceptance of Jingfusi Factory.

High Precision CNC Slant Bed Lathe Machine
