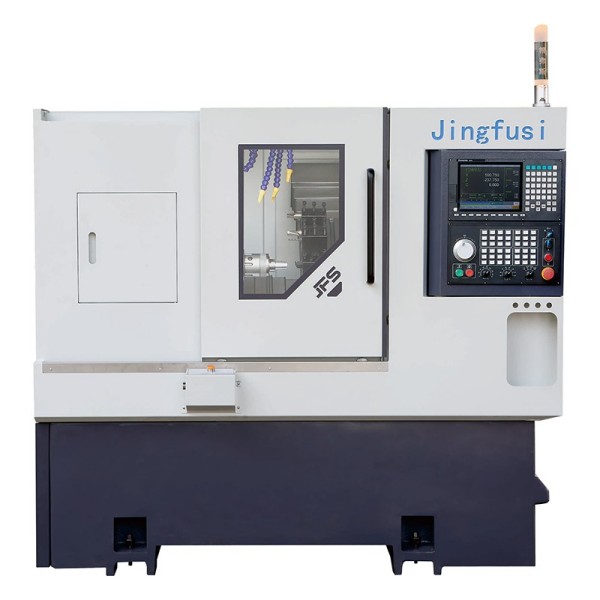

CNC Gang Tool Lathe CK46 52 76

Jingfusi provides durable CNC Gang Tool Lathe CK46 52 76. Our product is of superior quality, integrating milling and turning operations for high efficiency. We have rich experience in the industry, so please contact us for comprehensive service.

Model:CK46/52

Send Inquiry

Product Description

Jingfusi is a CNC Gang Tool Lathe CK46 52 76 manufacturer. The following are the main features of our product:

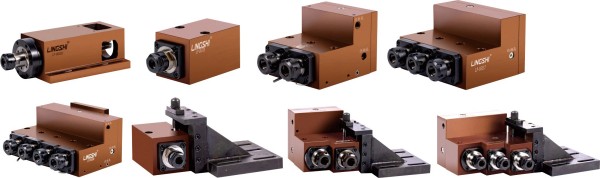

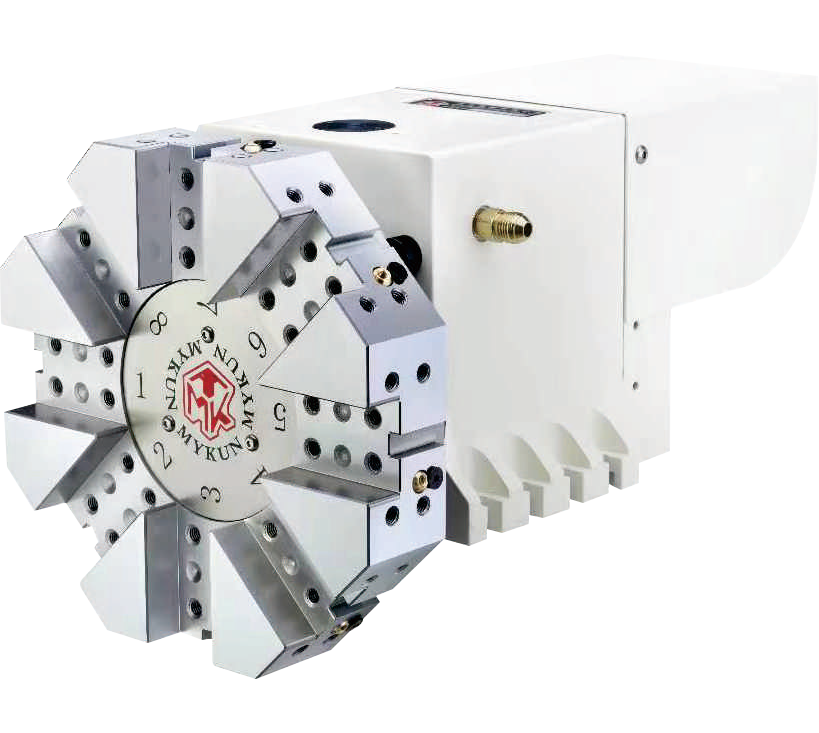

· Can be equipped with turrets,fly cutter heads,power heads,etc.The power head can be tilte from 0°to 90°for integrated milling and turning.

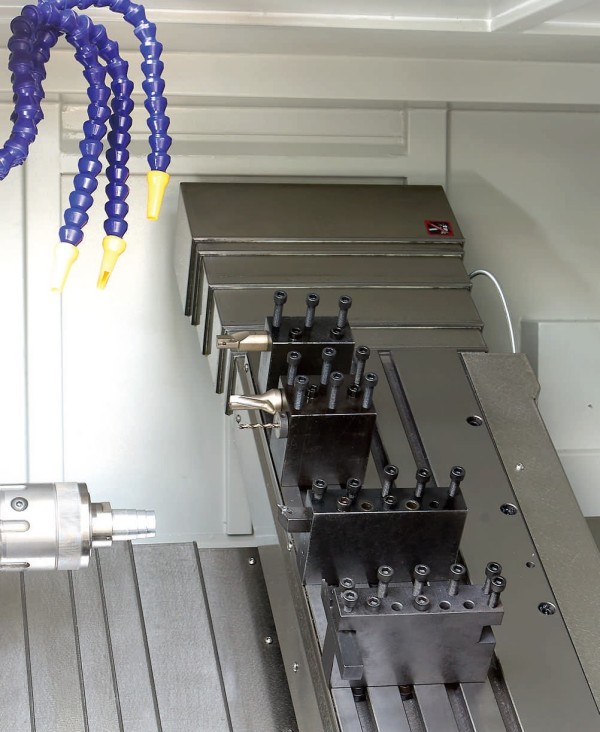

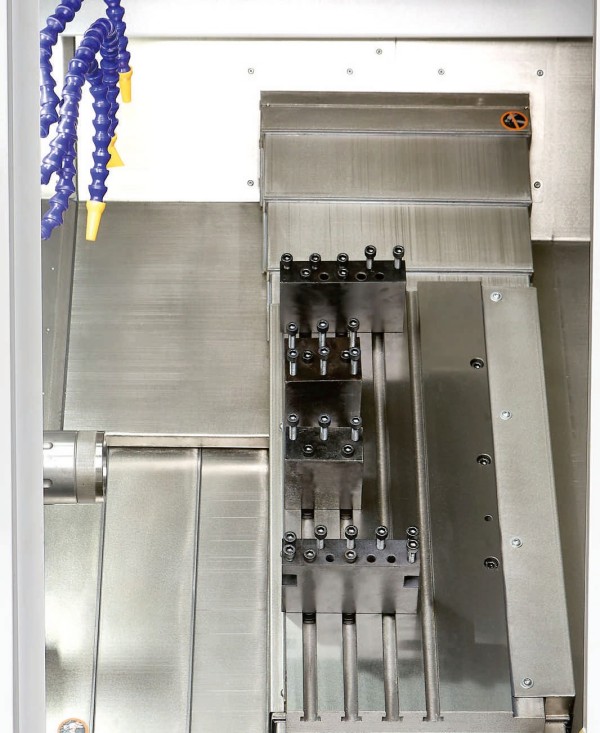

· Enlarged tool holder for improved rigidity.
· Can machine stainless steel,titanium alloys,carbon steel,and other materials.
· The integral casting undergoes annealing,vibration time,and other aging processes to ensure long-term stability and extend the machine tool's ifespan.

Main Specification

Model of lathe		unit	CK46	CK52	CK76	Remart
Processing capacity	Max swing diameter over bed	mm	Ø400	400	Ø400
	Maximum tuming diameter	mm	Q160	Ø160	Ø160	Disk
	Max.turning length	mm	380	380	380
	sidle ceterheight fom gound	mm	1080	1080	1080
	Spindle nose	-	A2-5	A2-6	A2-8
	Spindle bore diameter	mm	056	066	086
	Maximum bar materia dameter	mm	Ø45	Ø51	072
	Maximum spindle speed	r/min	4000	4000	2000
	Spindle motor power/torque	Kw/N.m	7.5Kw/47Nm	11Kw/72Nm	15Kw/143Nm
Feed axis	Max.fast travel speed	m/min	24	24	24
	×/Z/Y axis motor power/torque	Kw/N.m	YASKAWA1.3 KW/8.34Nm or SYNTEC1.8KW/rated115Nm	YASKAWA11.3 KW/8.34Nm or SYNTEC1.8KW/rated 11.5Nm	YASKAWA11.3 KW/68.34Nm or SYNTEC1.8KW/rated 11.5Nm
	X/Z-axis C3-grade ball screws	-	32/32	32/32	32/32
	×Z-axi oller guide rals	-	35/35	35/35	35/35
	X axiseffective travel	mm	1000	1000	1000
	Z axis effective travel	mm	400	400	400
Equipmentspecifications	Machine net weight	kg	2600	2700	2800
	Total machine power	KW	10	13.5	17.5
	Machine L×W×H	mm	2100×1580×1800	2100×1580×1800	2100×1580×1800

The machine tool is constanty being optimized;please refer t the actual data of the machine too for the above parameters.

Optional items

Configuration item		CK46	CK52	Ck76
Main Spindle	Mechanical spindle	●	●	●
Main Spindle	Electric spindle	O	O	O
controller	SYNTEC controller	●	●	●
controller	FANUC controller	O	O	O
Feed axis	Yaskawa	●	●	●
Feed axis	SYNTEC	O	O	O
Clamping	Pull back clamp	●	●	●
Clamping	Chuck	O	O	O
Auxiliary equipment	Material receiving device	O	O	O
	Feeding device	O	O	O
	Chip conveyor	O	O	O
	Automated robot	O	O	O
	oil mist separator	O	O	O
