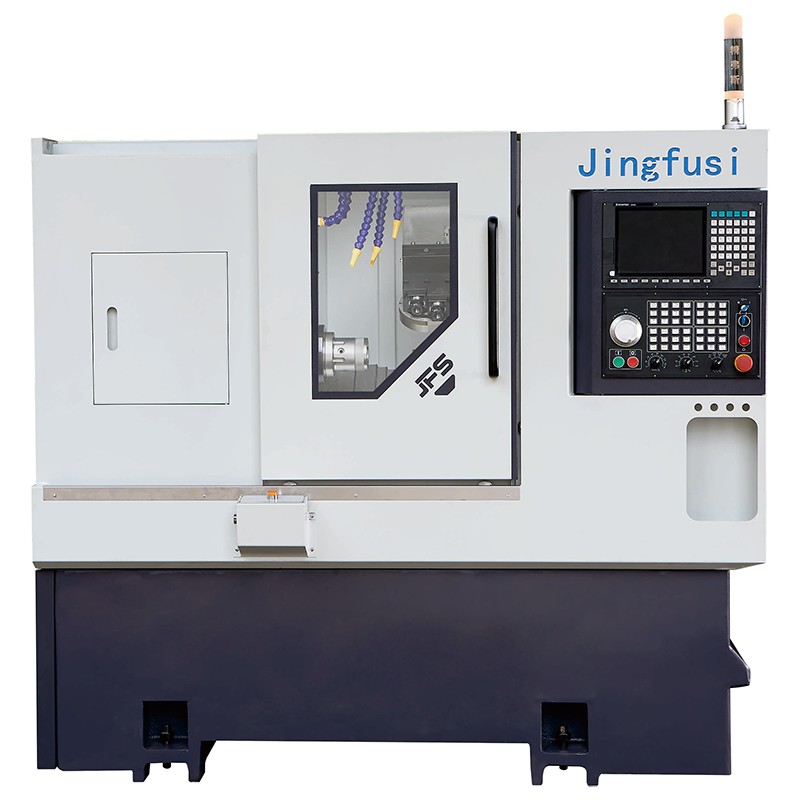

CNC Turning and Milling Compound Machine

Having accumulated extensive expertise in the manufacturing of CNC Turning and Milling Compound Machines, Jingfusi® is well-equipped to offer a diverse selection of these machines. Our high-quality CNC Turning and Milling Compound Machines are tailored to suit a variety of applications. Should you require assistance, please feel free to access our real-time online support. Beyond the product catalog provided, we also offer the option to customize unique products according to your precise requirements and specifications.

Model:CK76DTY

Send Inquiry

Product Description

With our extensive experience in producing CNC Turning and Milling Compound Machines, Jingfusi® is fully prepared to provide a wide array of these machines. Our CNC Turning and Milling Compound Machines are of the utmost quality and can be adapted to various applications. If you need any assistance, please don't hesitate to utilize our live online support. Furthermore, we offer the flexibility to customize exclusive products to match your specific needs and specifications, going beyond what is listed in our product catalog.

Parameter List

item Model of lathe unit CK46DTY CK52DTY
Processing scope Maximum rotation diameter of the spindle mm Ø 600
Maximum turning outer circle length mm 300
Maximum bar diameter mm Ø 45 Ø 55
principal axis Maximum spindle speed r/min 6000(setting 4500) 4200(setting 3500)
Spindle head type
A2 - 5 A2 - 6
Spindle through-hole diameter mm Ø 56 Ø 66
feed X/Z/Y axis maximum stroke mm 800/400/±60
90 ° power head passing through the center of the spindle mm 60
Maximum fast movement of X/Z/Y axis m/min 24(setting 18) / 24(setting 18) /15(setting 12)
X/Z/Y axis screw rod mm 32/32/32
X/Z/Y axis roller track mm 35/35/35
Power turret
Power turret model (power turret) BMT BMT45,Optional BMT55
Power head collet ER ER25
Fixed tool holder size mm 25X25
Bore holder shank diameter mm Ø25
Tailstock Main motor power/torque KW/Nm 7.5 KW/rated 47Nm 11KW/rated 72Nm
X/Z/Y axis motor power/torque KW/Nm yaskawa 1.8KW/11.5N. Optional new generation2.4 KW/rated 11.5Nm
Maximum speed of turret power motor r/min 80000°(power head ≤7000 change,90°power head ≤6000 change)
Power head motor power/torque KW/Nm 8.5 KW/rated 16.5Nm
Power/torque of turret tool changing motor KW/Nm New generation1.0 KW /3.1NM
other Spindle positioning brake device
hydraulic pressure
Bed inclination ° 35°
Machine tool length X width X height mm 2200X1500X1900
Total weight of the entire machine KG 3900KG
Total power kw 15
Average power consumption kw/h 3

Machine Tool Accuracy

Machine accuracy,Jingfus factor standard :
Major test item Schematic diagram Factory standard
Spindle radial beat CNC Turning and Milling Compound Machine Detect runout of outer cone 0.0035
X-axis repeat position CNC Turning and Milling Compound Machine Detect repeated positioning of the X-axis. Note: First predict about 50 times to offset the error of the cold engine and hot engine, and then detect the repeated positioning. 0.003
Z-axis repeat position CNC Turning and Milling Compound Machine
Detect repeated positioning on the Z axis. Note: First predict about 50 times to offset the error of the cold engine and hot engine, and then detect the repeated positioning. 0.003
Y-axis repeat position CNC Turning and Milling Compound Machine Detect repeated positioning on the Y axis. Note: First predict about 50 times to offset the error of the cold engine and hot engine, and then detect the repeated positioning. 0.004
C axis repeat position CNC Turning and Milling Compound Machine Detect the repositioning of the C-axis fixed point, note: first predict about 50 times to offset the error of the cold engine and hot engine, and then detect the repeated positioning 20 arc seconds
C axis position rotary CNC Turning and Milling Compound Machine  Detect the random position accuracy of the C-axis, note: first predict about 50 times to offset the error of the cold engine and hot engine, and then check the repeated settings 72 arc seconds
Power head clamping beat CNC Turning and Milling Compound Machine Cone beat 0.015
Power head clamping beat CNC Turning and Milling Compound Machine
Clamping beating 0.01
If the customer wants to test the ISO or VD1 accuracy of X/Z/Y axis, it shall be determined at the time of writing the contract. The customer must test this item at the same time of the initial acceptance of Jingfusi Factory.
