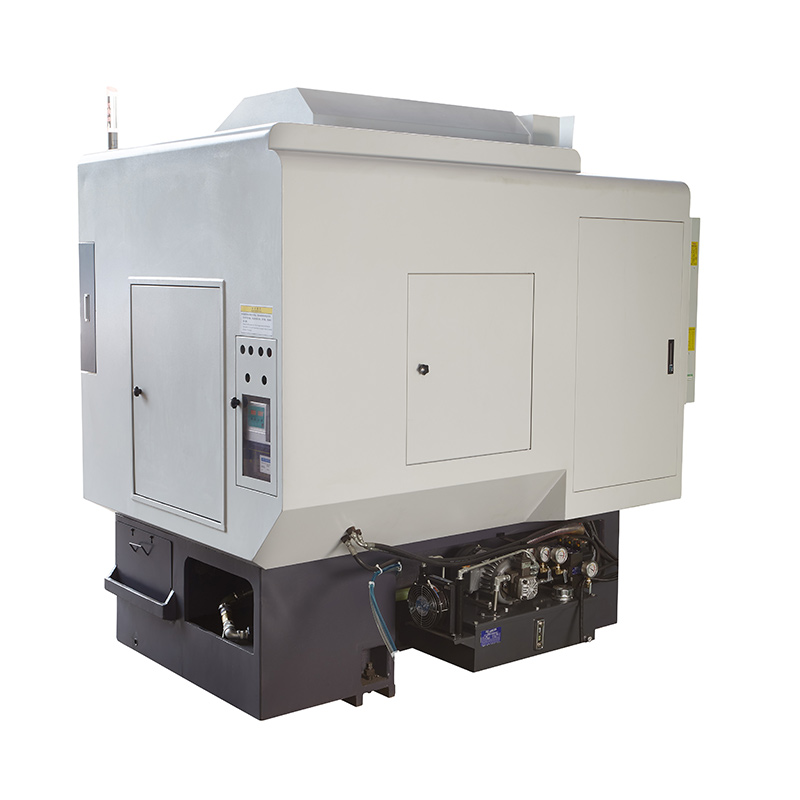

High Precision Turret Turning and Milling Machine

As the professional manufacturer, we would like to provide you Jingfusi® high quality High Precision Turret Turning and Milling Machine. And we will offer you the best after-sale service and timely delivery.

Model:CK76DTY

Send Inquiry

Product Description


Precision is key when it comes to turning and milling, and our machine gives you that exactness. With a strong and durable construction, this machine has the capabilities to handle precise machining jobs, with a high-quality output.

The Jingfusi® turret design of this machine allows for quick and easy tool changes, making it perfect for a variety of machining jobs. With a powerful milling spindle and a turning function, you'll have the ability to create complex parts, quickly and accurately.

Our High Precision Turret Turning and Milling Machine is designed to simplify the machining process and maximize efficiency. It provides versatility to tackle a variety of tasks and applications, with its high-speed processing and multi-functionality.

Not only is our machine precise, but it is also built to last. With a durable and sturdy frame, this machine can handle a wide range of materials and applications, ensuring optimal productivity and proficiency.

In addition, the intuitive interface of this machine makes it easy to use, even for those new to machining. The controls are designed for user-friendliness, allowing you to easily program and execute the machining job at hand.

Our High Precision Turret Turning and Milling Machine exceeds expectations in terms of durability, efficiency and precision. With its powerful capabilities, sturdy construction and easy-to-use interface, it is the ideal solution for your precision turning and milling needs.

Jingfusi® Machine Travel Diagram

High Precision Turret Turning and Milling Machine

Product Details

High Precision Turret Turning and Milling Machine

Parameter List

item Model of lathe unit CK52DTY CK76DTY CK46DTY
Processing scope Maximum rotation diameter of the spindle mm Ø 700
Maximum turning outer circle length mm 520
Maximum bar diameter mm Ø 55 Ø 72 Ø 45
principal axis Maximum spindle speed r/min 4200(setting 3500) 3200(setting 2000) 6000(设定4500)
Spindle head type
A2 - 6 A2 -8 A2 - 5
Spindle through-hole diameter mm Ø 66 Ø 86 Ø 56
feed X/Z/Y axis maximum stroke mm 260/500/±60
90 ° power head passing through the center of the spindle mm 30
Maximum fast movement of X/Z/Y axis m/min 24(setting 16)/ 24(setting 16)/14(setting 8)
X/Z/Y axis screw rod mm 40
X/Z/Y axis roller track mm 35/45/35
Power turret
Power turret model (power turret) BMT BMT55
Power head collet ER ER32
Fixed tool holder size mm 25X25
Bore holder shank diameter mm Ø32
electrical machinery Main motor power/torque KW/Nm 11KW/rated 72Nm 15KW/rated 98Nm 7.5 KW/rated 47Nm
X/Z/Y axis motor power/torque KW/Nm yaskawa 2.9 KW /18.6Nm,Optional new generation3.1 KW /15Nm
Power/torque of turret power head motor KW/Nm New generation 3.1 KW/15NM
Maximum speed of turret power motor r/min 6000(setting 4000) ,Common speed≤4000
Power head motor power/torque KW/Nm 3.1 KW/15NM
Power/torque of turret tool changing motor KW/Nm New generation1.0 KW /3.1NM
Tailstock Tailstock stroke mm 520
Maximum hydraulic stroke of tailstock
mm 100
Tailstock top needle cone hole taper MK mohs 5#
Maximum distance between tip and chuck mm 690
other Spindle positioning brake device
Hydraulic, optional programmable
Bed inclination ° 30° or 15°
Machine tool length X width X height mm 2500X1680X1900
Total weight of the entire machine KG     5000KG
Total power kw 20
Average power consumption kw/h 3

Machine Tool Accuracy

Machine accuracy,Jingfus factor standard :
Major test item Schematic diagram Detection method
Factory standard
Spindle radial beat High Precision Turret Turning and Milling Machine Detect runout of outer cone 0.0035
X-axis repeat position High Precision Turret Turning and Milling Machine Detect repeated positioning of the X-axis. Note: First predict about 50 times to offset the error of the cold engine and hot engine, and then detect the repeated positioning. 0.003
Z-axis repeat position High Precision Turret Turning and Milling Machine
Detect repeated positioning on the Z axis. Note: First predict about 50 times to offset the error of the cold engine and hot engine, and then detect the repeated positioning. 0.003
Y-axis repeat position High Precision Turret Turning and Milling Machine Detect repeated positioning on the Y axis. Note: First predict about 50 times to offset the error of the cold engine and hot engine, and then detect the repeated positioning. 0.004
C axis repeat position High Precision Turret Turning and Milling Machine Detect the repositioning of the C-axis fixed point, note: first predict about 50 times to offset the error of the cold engine and hot engine, and then detect the repeated positioning 20 arc seconds
C axis position rotary High Precision Turret Turning and Milling Machine  Detect the random position accuracy of the C-axis, note: first predict about 50 times to offset the error of the cold engine and hot engine, and then check the repeated settings 72 arc seconds
Power head clamping beat High Precision Turret Turning and Milling Machine Cone beat 0.015
Power head clamping beat High Precision Turret Turning and Milling Machine
Clamping beating 0.01
If the customer wants to test the ISO or VD1 accuracy of X/Z/Y axis, it shall be determined at the time of writing the contract. The customer must test this item at the same time of the initial acceptance of Jingfusi Factory.
