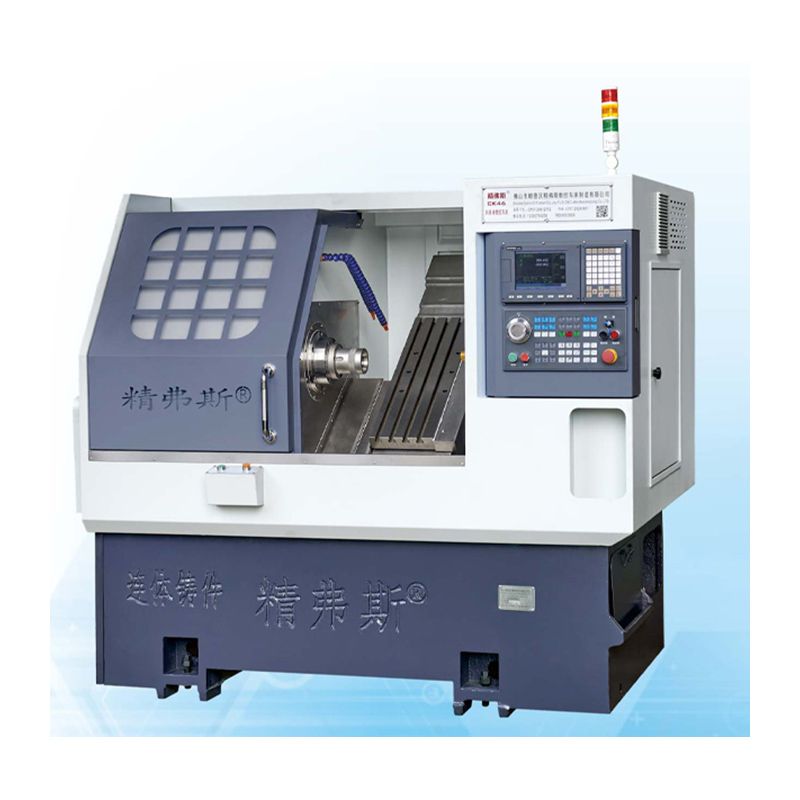

CNC Turning And Milling Machine

Jingfusi® CNC Turning and Milling Machine is the ultimate solution for precision metalworking. Whether you are looking to produce complex components or simple parts, our machine is designed to meet your manufacturing needs. With its advanced features and high-quality components, our CNC Turning and Milling Machine is the perfect choice for businesses looking to streamline their production process.

Model:CK76DTY

Send Inquiry

Product Description

Precise Machining for Enhanced Productivity

Our CNC Turning and Milling Machine is engineered for precision and accuracy. It utilizes advanced technology to ensure that every part produced is of the highest quality. With its precise machining capabilities, our machine operates quickly, saving you time and increasing your productivity. Plus, with its easy-to-use interface, you can set up and run your jobs with ease.

Versatility for Various Applications

Our CNC Turning and Milling Machine is versatile and can handle a wide range of applications. It is specifically designed to handle components of varying complexity, making it the ideal machine for manufacturers producing a variety of parts. Whether you are producing complex aerospace components or simple mechanical parts, our machine can handle your needs.

Cost-Effective Solution for Small and Large Manufacturers

Our CNC Turning and Milling Machine is a cost-effective solution for small and large companies. Its advanced features make it the perfect investment for businesses looking to reduce their operational costs while increasing productivity. With its low maintenance costs, our machine can help you save money on repairs, while its efficient performance ensures you can produce more parts in less time.

Advanced Features for Enhanced Performance

Our CNC Turning and Milling Machine is packed with advanced features that make it the ultimate metalworking tool. It is equipped with high-quality components, including a powerful spindle motor and highly accurate linear guides, ensuring that every job is completed with precision and efficiency. Additionally, its flexible tooling system allows for quick tool changes, streamlining the production process and reducing downtime.

In conclusion, our CNC Turning and Milling Machine is the ultimate solution for precision metalworking. Its advanced features, high-quality components, and ease of use make it the perfect choice for businesses looking to streamline their production process. With its versatility, cost effectiveness, and enhanced performance, our machine is the perfect investment for any small or large manufacturer looking to increase productivity, reduce costs, and produce high-quality components.



Parameter List

item Model of lathe unit CK46DTY CK52DTY
Processing scope Maximum rotation diameter of the spindle mm Ø 600
Maximum turning outer circle length mm 300
Maximum bar diameter mm Ø 45 Ø 55
principal axis Maximum spindle speed r/min 6000(setting 4500) 4200(setting 3500)
Spindle head type
A2 - 5 A2 - 6
Spindle through-hole diameter mm Ø 56 Ø 66
feed X/Z/Y axis maximum stroke mm 800/400/±60
90 ° power head passing through the center of the spindle mm 60
Maximum fast movement of X/Z/Y axis m/min 24(setting 18) / 24(setting 18) /15(setting 12)
X/Z/Y axis screw rod mm 32/32/32
X/Z/Y axis roller track mm 35/35/35
Power turret
Power turret model (power turret) BMT BMT45,Optional BMT55
Power head collet ER ER25
Fixed tool holder size mm 25X25
Bore holder shank diameter mm Ø25
Tailstock Main motor power/torque KW/Nm 7.5 KW/rated 47Nm 11KW/rated 72Nm
X/Z/Y axis motor power/torque KW/Nm yaskawa 1.8KW/11.5N. Optional new generation2.4 KW/rated 11.5Nm
Maximum speed of turret power motor r/min 80000°(power head ≤7000 change,90°power head ≤6000 change)
Power head motor power/torque KW/Nm 8.5 KW/rated 16.5Nm
Power/torque of turret tool changing motor KW/Nm New generation1.0 KW /3.1NM
other Spindle positioning brake device
hydraulic pressure
Bed inclination ° 35°
Machine tool length X width X height mm 2200X1500X1900
Total weight of the entire machine KG 3900KG
Total power kw 15
Average power consumption kw/h 3

Machine Tool Accuracy

Machine accuracy,Jingfus factor standard :
Major test item Schematic diagram Factory standard
Spindle radial beat CNC Turning and Milling Compound Machine Detect runout of outer cone 0.0035
X-axis repeat position CNC Turning and Milling Compound Machine Detect repeated positioning of the X-axis. Note: First predict about 50 times to offset the error of the cold engine and hot engine, and then detect the repeated positioning. 0.003
Z-axis repeat position CNC Turning and Milling Compound Machine
Detect repeated positioning on the Z axis. Note: First predict about 50 times to offset the error of the cold engine and hot engine, and then detect the repeated positioning. 0.003
Y-axis repeat position CNC Turning and Milling Compound Machine Detect repeated positioning on the Y axis. Note: First predict about 50 times to offset the error of the cold engine and hot engine, and then detect the repeated positioning. 0.004
C axis repeat position CNC Turning and Milling Compound Machine Detect the repositioning of the C-axis fixed point, note: first predict about 50 times to offset the error of the cold engine and hot engine, and then detect the repeated positioning 20 arc seconds
C axis position rotary CNC Turning and Milling Compound Machine  Detect the random position accuracy of the C-axis, note: first predict about 50 times to offset the error of the cold engine and hot engine, and then check the repeated settings 72 arc seconds
Power head clamping beat CNC Turning and Milling Compound Machine Cone beat 0.015
Power head clamping beat CNC Turning and Milling Compound Machine
Clamping beating 0.01
If the customer wants to test the ISO or VD1 accuracy of X/Z/Y axis, it shall be determined at the time of writing the contract. The customer must test this item at the same time of the initial acceptance of Jingfusi Factory.
