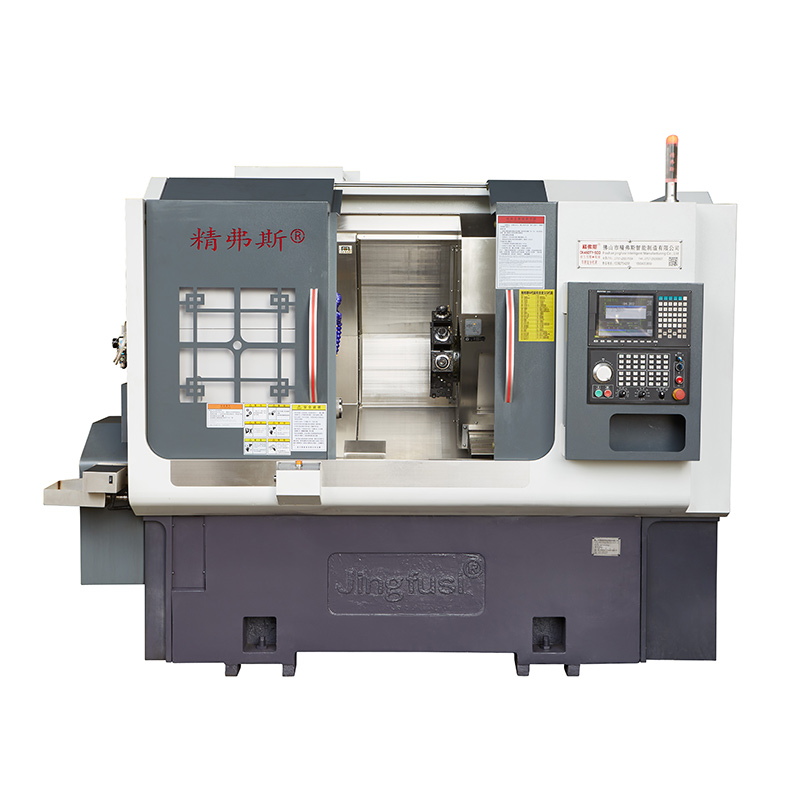

CNC Milling and Turning Composite Machine

The CNC Milling and Turning Composite Machine made in China suppliers, often referred to as a CNC mill-turn machine, is a versatile piece of manufacturing equipment that combines the capabilities of both milling and turning processes. This machine is designed for precision machining and offers a wide range of applications in various industries.

Model:CK46DTY

Send Inquiry

Product Description

Milling Capability: The CNC Milling and Turning Composite Machine is equipped with milling tools that can perform operations such as drilling, boring, contouring, and slotting. These tools are used to remove material from the workpiece to create complex shapes and features.


Turning Capability: The CNC Lathe With Turret And Hydraulic Tail Stock has a lathe spindle with the ability to rotate the workpiece. This spindle is used for turning operations, which involve the removal of material by cutting as the workpiece rotates. Turning can be used to create cylindrical and conical shapes, as well as threads.


Multi-Axis Control: CNC mill-turn machines often feature multiple axes of movement, allowing for precise and complex machining. These axes can include X, Y, Z, and rotational axes, which enable the machining of parts from multiple angles and orientations.


Automatic Tool Changer: The Turret CNC Turning and milling Combined Machine may include an automatic tool changer that can swap out different cutting tools quickly and efficiently, allowing for uninterrupted machining and increased versatility.


Workpiece Clamping: The machine is equipped with mechanisms for securely clamping and holding the workpiece in place during machining, ensuring accuracy and repeatability.


CAD/CAM Integration: CNC mill-turn machines are typically controlled by computer software that can interpret CAD (Computer-Aided Design) and CAM (Computer-Aided Manufacturing) files. This allows for the precise programming of machining operations and the production of complex parts.


High Precision: These machines are known for their high precision and tight tolerances, making them suitable for applications that require intricate and accurate machining.


Versatility: CNC mill-turn machines are versatile and can be used in a wide range of industries, including aerospace, automotive, medical, and general manufacturing.


Efficiency: The combination of milling and turning operations in a single machine enhances production efficiency, as it reduces the need for multiple setups and transfers between different machines.


Complex Part Production: CNC mill-turn machines are ideal for producing complex parts with both milled and turned features, as they can perform all required operations in one setup.


These Automatic Turning and Milling Combined Machines are commonly used in the production of components and parts that require intricate and precise machining, such as engine components, aerospace parts, medical devices, and more. They are a valuable asset in modern manufacturing processes, as they streamline production and increase efficiency.



CNC Milling and Turning Composite Machine Travel Diagram

CNC Milling and Turning Composite Machine

Product Details

CNC Milling and Turning Composite Machine

CNC Milling and Turning Composite Machine Parameter List

item Model of lathe unit CK52DTY CK76DTY CK46DTY
Processing scope Maximum rotation diameter of the spindle mm Ø 700
Maximum turning outer circle length mm 520
Maximum bar diameter mm Ø 55 Ø 72 Ø 45
principal axis Maximum spindle speed r/min 4200(setting 3500) 3200(setting 2000) 6000(设定4500)
Spindle head type
A2 - 6 A2 -8 A2 - 5
Spindle through-hole diameter mm Ø 66 Ø 86 Ø 56
feed X/Z/Y axis maximum stroke mm 260/500/±60
90 ° power head passing through the center of the spindle mm 30
Maximum fast movement of X/Z/Y axis m/min 24(setting 16)/ 24(setting 16)/14(setting 8)
X/Z/Y axis screw rod mm 40
X/Z/Y axis roller track mm 35/45/35
Power turret
Power turret model (power turret) BMT BMT55
Power head collet ER ER32
Fixed tool holder size mm 25X25
Bore holder shank diameter mm Ø32
electrical machinery Main motor power/torque KW/Nm 11KW/rated 72Nm 15KW/rated 98Nm 7.5 KW/rated 47Nm
X/Z/Y axis motor power/torque KW/Nm yaskawa 2.9 KW /18.6Nm,Optional new generation3.1 KW /15Nm
Power/torque of turret power head motor KW/Nm New generation 3.1 KW/15NM
Maximum speed of turret power motor r/min 6000(setting 4000) ,Common speed≤4000
Power head motor power/torque KW/Nm 3.1 KW/15NM
Power/torque of turret tool changing motor KW/Nm New generation1.0 KW /3.1NM
Tailstock Tailstock stroke mm 520
Maximum hydraulic stroke of tailstock
mm 100
Tailstock top needle cone hole taper MK mohs 5#
Maximum distance between tip and chuck mm 690
other Spindle positioning brake device
Hydraulic, optional programmable
Bed inclination ° 30° or 15°
Machine tool length X width X height mm 2500X1680X1900
Total weight of the entire machine KG     5000KG
Total power kw 20
Average power consumption kw/h 3

Turret Turning and Milling Combined Machine Tool Accuracy

Machine accuracy,Jingfus factor standard :
Major test item Schematic diagram Detection method
Factory standard
Spindle radial beat CNC Milling and Turning Composite Machine Detect runout of outer cone 0.0035
X-axis repeat position CNC Milling and Turning Composite Machine Detect repeated positioning of the X-axis. Note: First predict about 50 times to offset the error of the cold engine and hot engine, and then detect the repeated positioning. 0.003
Z-axis repeat position CNC Milling and Turning Composite Machine
Detect repeated positioning on the Z axis. Note: First predict about 50 times to offset the error of the cold engine and hot engine, and then detect the repeated positioning. 0.003
Y-axis repeat position CNC Milling and Turning Composite Machine Detect repeated positioning on the Y axis. Note: First predict about 50 times to offset the error of the cold engine and hot engine, and then detect the repeated positioning. 0.004
C axis repeat position CNC Milling and Turning Composite Machine Detect the repositioning of the C-axis fixed point, note: first predict about 50 times to offset the error of the cold engine and hot engine, and then detect the repeated positioning 20 arc seconds
C axis position rotary CNC Milling and Turning Composite Machine  Detect the random position accuracy of the C-axis, note: first predict about 50 times to offset the error of the cold engine and hot engine, and then check the repeated settings 72 arc seconds
Power head clamping beat CNC Milling and Turning Composite Machine Cone beat 0.015
Power head clamping beat CNC Milling and Turning Composite Machine
Clamping beating 0.01
If the customer wants to test the ISO or VD1 accuracy of X/Z/Y axis, it shall be determined at the time of writing the contract. The customer must test this item at the same time of the initial acceptance of Jingfusi Factory.
