Economical Turn-Mill Machining Machine

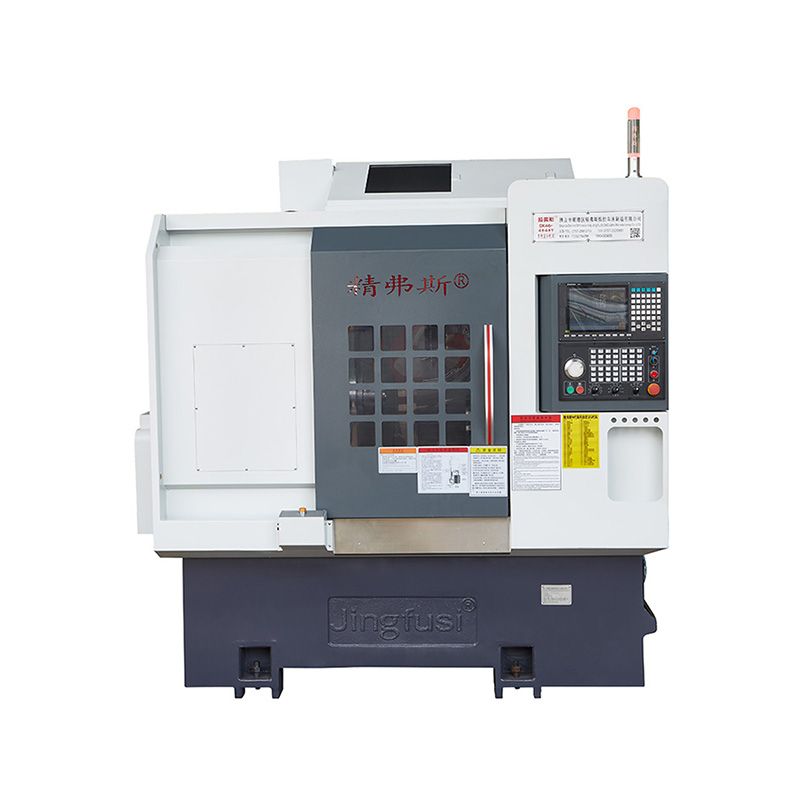

The Jingfusi® Economical Turn-Mill Machining Machine is designed with a powerful spindle brake auxiliary mechanism to improve the rigidity during parts processing. The direct tool changing system saves the complicated steps of the tool changing procedure and shortens the running time of tool changing, achieving efficient processing and saving costs for users.

Model:CK76DTY

Send Inquiry

Product Description

The Jingfusi® Economical Turn-Mill Machining Machine is a 3-axis (X, Y, Z) multi-station computer numerically controlled turning and milling compound lathe. It integrates turning, milling, drilling, boring, tapping and other functions into one device. It can perform end and side milling, drilling, tapping and other combined processing. It is especially suitable for processing some rotary parts with complex shapes and high precision requirements. It can complete all or most of the processing steps in one clamping. Ensure accuracy, improve efficiency and reduce costs.


Jingfusi® Machine Travel Diagram

Economical Turn-Mill Machining Machine

Product Details

Economical Turn-Mill Machining Machine

Parameter List

item Model of lathe unit CK52DTY CK76DTY CK46DTY
Processing scope Maximum rotation diameter of the spindle mm Ø 700
Maximum turning outer circle length mm 520
Maximum bar diameter mm Ø 55 Ø 72 Ø 45
principal axis Maximum spindle speed r/min 4200(setting 3500) 3200(setting 2000) 6000(设定4500)
Spindle head type
A2 - 6 A2 -8 A2 - 5
Spindle through-hole diameter mm Ø 66 Ø 86 Ø 56
feed X/Z/Y axis maximum stroke mm 260/500/±60
90 ° power head passing through the center of the spindle mm 30
Maximum fast movement of X/Z/Y axis m/min 24(setting 16)/ 24(setting 16)/14(setting 8)
X/Z/Y axis screw rod mm 40
X/Z/Y axis roller track mm 35/45/35
Power turret
Power turret model (power turret) BMT BMT55
Power head collet ER ER32
Fixed tool holder size mm 25X25
Bore holder shank diameter mm Ø32
electrical machinery Main motor power/torque KW/Nm 11KW/rated 72Nm 15KW/rated 98Nm 7.5 KW/rated 47Nm
X/Z/Y axis motor power/torque KW/Nm yaskawa 2.9 KW /18.6Nm,Optional new generation3.1 KW /15Nm
Power/torque of turret power head motor KW/Nm New generation 3.1 KW/15NM
Maximum speed of turret power motor r/min 6000(setting 4000) ,Common speed≤4000
Power head motor power/torque KW/Nm 3.1 KW/15NM
Power/torque of turret tool changing motor KW/Nm New generation1.0 KW /3.1NM
Tailstock Tailstock stroke mm 520
Maximum hydraulic stroke of tailstock
mm 100
Tailstock top needle cone hole taper MK mohs 5#
Maximum distance between tip and chuck mm 690
other Spindle positioning brake device
Hydraulic, optional programmable
Bed inclination ° 30° or 15°
Machine tool length X width X height mm 2500X1680X1900
Total weight of the entire machine KG     5000KG
Total power kw 20
Average power consumption kw/h 3

Machine Tool Accuracy

Machine accuracy,Jingfus factor standard :
Major test item Schematic diagram Detection method
Factory standard
Spindle radial beat Economical Turn-Mill Machining Machine Detect runout of outer cone 0.0035
X-axis repeat position Economical Turn-Mill Machining Machine Detect repeated positioning of the X-axis. Note: First predict about 50 times to offset the error of the cold engine and hot engine, and then detect the repeated positioning. 0.003
Z-axis repeat position Economical Turn-Mill Machining Machine
Detect repeated positioning on the Z axis. Note: First predict about 50 times to offset the error of the cold engine and hot engine, and then detect the repeated positioning. 0.003
Y-axis repeat position Economical Turn-Mill Machining Machine Detect repeated positioning on the Y axis. Note: First predict about 50 times to offset the error of the cold engine and hot engine, and then detect the repeated positioning. 0.004
C axis repeat position Economical Turn-Mill Machining Machine Detect the repositioning of the C-axis fixed point, note: first predict about 50 times to offset the error of the cold engine and hot engine, and then detect the repeated positioning 20 arc seconds
C axis position rotary Economical Turn-Mill Machining Machine  Detect the random position accuracy of the C-axis, note: first predict about 50 times to offset the error of the cold engine and hot engine, and then check the repeated settings 72 arc seconds
Power head clamping beat Economical Turn-Mill Machining Machine Cone beat 0.015
Power head clamping beat Economical Turn-Mill Machining Machine
Clamping beating 0.01
If the customer wants to test the ISO or VD1 accuracy of X/Z/Y axis, it shall be determined at the time of writing the contract. The customer must test this item at the same time of the initial acceptance of Jingfusi Factory.
